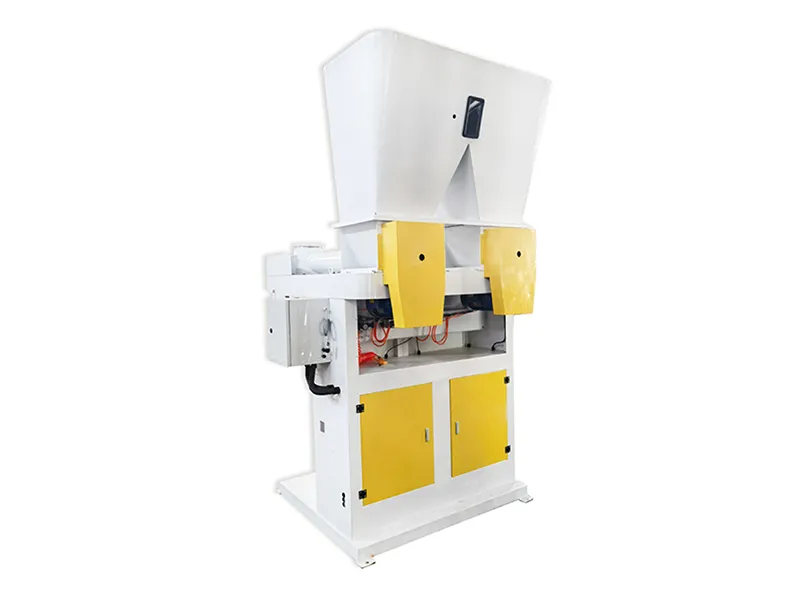

LCS/D Automatic Weighing and Packing Machine

This equipment makes use of high-quality components to realize reliable operation.

استفسر الآن

Next Product

التفاصيل

LCS series weighing and packing machine is designed to put a fixed amount of flour, bran or other powder materials into 1-50kg plastic woven or paper bags.

• This equipment makes use of high-quality components to realize reliable operation.

• The bag packing controller is manufactured by General Measure, while the pneumatic components are supplied by SMC. So, this product is able to serve for a long time with low maintenance requirement.

• Due to the application of double-spiral feeding method, our weighing and packing machine is able to work in a fast, precise and stable way.

Single station

Model	Capacity (bags/h)	Power	Range(kg)	Air supply	Dimension(mm)(LXWXH)
LCS5	300-350	2.2	1-5	0.4-0.6Mpa	210013002700mm
LCS10	260	2.2	10	0.4-0.6Mpa	210013002700mm
LCS25	150-180	2.2	25-50	0.4-0.6Mpa	210013002700mm

Double station

Model	Capacity (bags/h)	Power	Range(kg)	Air supply	Dimension(mm)(LXWXH)
LCSD5	500-600	2.2*2	1-5	0.4-0.6Mpa	420015003200
LCSD10	500	2.2*2	10	0.4-0.6Mpa	420015003200
LCSD25	350-480	2.2*2	25-50	0.4-0.6Mpa	420015003200
