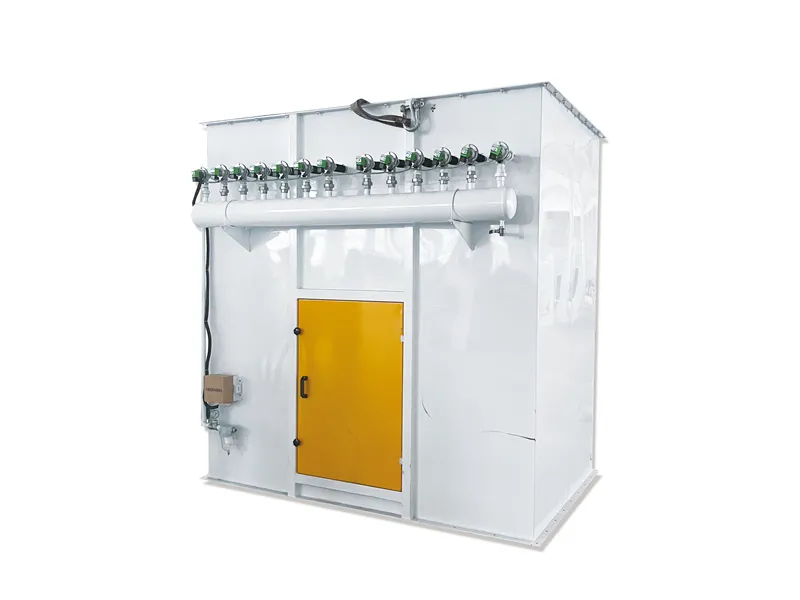

TBLM High-pressure impulse filter

Knitted polyester filter bag, direct action solenoid valve.

استفسر الآن

Next Product

التفاصيل

TBLM High-pressure impulse filter adopts advanced technology of direct injection cleaning with electromagnetic pulse valve, which has the characteristics of non-stop maintenance of injection system.

• Knitted polyester filter bag, direct action solenoid valve.
• For large impulse dust filter, there are screw conveyor and air lock under it to reduce height.
• Dust removing rate can be as high as 99.9%.
• Unique jetting device, frame-type detachable filter bag is convenient for maintenance.

Model	Length of filter bag（mm）	Filtering Area(m²）	Air Volume（m³/h)	Power(kw)	Notes
TBLM26	1800	17	1000-5040	0.75	1. Filtering wind speed 1-4m/min 2. Equipment resistance 80-120mm water column 3. Air leakage rate ≤ 5% 4. Spray pressure 0.04-0.05pm
	2000	19	1120-5600
	2400	23	1350-6750
TBLM39	1800	25.5	1500-7500	1.1+0.75
	2000	28.5	1680-8400
	2400	34.5	2030-10150
TBLM52	1800	35	2020-10100	1.1+0.75
	2000	38	2250-11250
	2400	46	2700-13500
TBLM78	1800	51.5	3050-15150	1.5+1.1
	2000	57	3360-16800
	2400	69	4050-20250
TBLM104	1800	68.5	4050-20200	1.5+1.5
	2000	76.5	4500-22500
	2400	92	5400-27000
TBLM130	1800	88	5040-25200	2.2+2*1.1
	2000	99	5600-28000
	2400	117.5	6700-33000
